Fully Automatic PET PP Blow Machines for Bottle Making

This full automatic PET, PVC, and PP disposable plastic bottle blowing machine is designed for efficient production of food-grade plastic bottle . It supports multiple materials and delivers stable performance, precise forming, and high output with minimal labor.

  • Item No :

    GYC-B2026
  • Order(MOQ) :

    1 SET
  • Payment :

    CONTACT
  • Product Origin :

    CHINA
  • Color :

    CUSTOMERMIZED
  • Shipping Port :

    CHINA PORT
  • Lead Time :

    35-40DAYS
  • Weight :

    10TON

Fully Automatic PET PP Blow Machines for Bottle Making

Main machine dimension: 2200(L)*1900(W)*1700(H)mm;
Convyeor dimension: 1700(L)*1200(W)*1800(H)mm;
Theoretical output: 0.5L, 2000-2500 pcs/hour.

The main structure is made of #63 channel steel, welded by A3 folding, the surface (blue as basic color) is treated with plastic ejection. the whole structure is delicate and durable.

Components: Solenoids adopt Taiwan Airtac brand, PLC is from Taiwan Delta.

Conveyor System: Adopts #45 steel, the surface is galvanized.

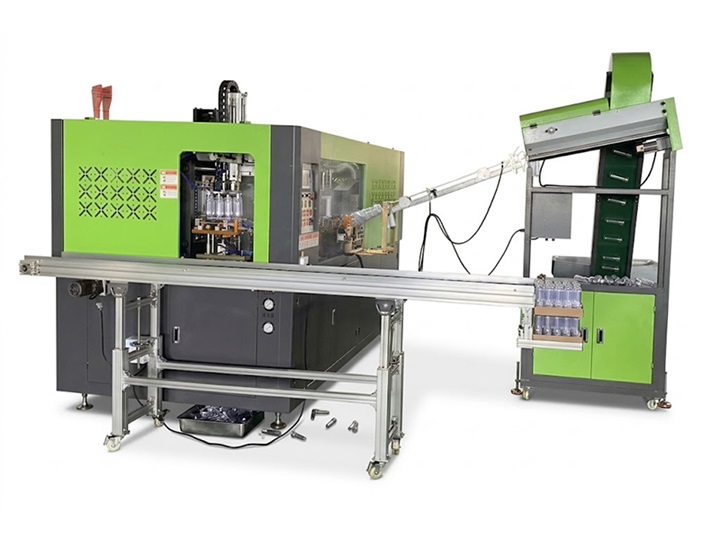

PET PP Blow Machine

Automated Feeding System

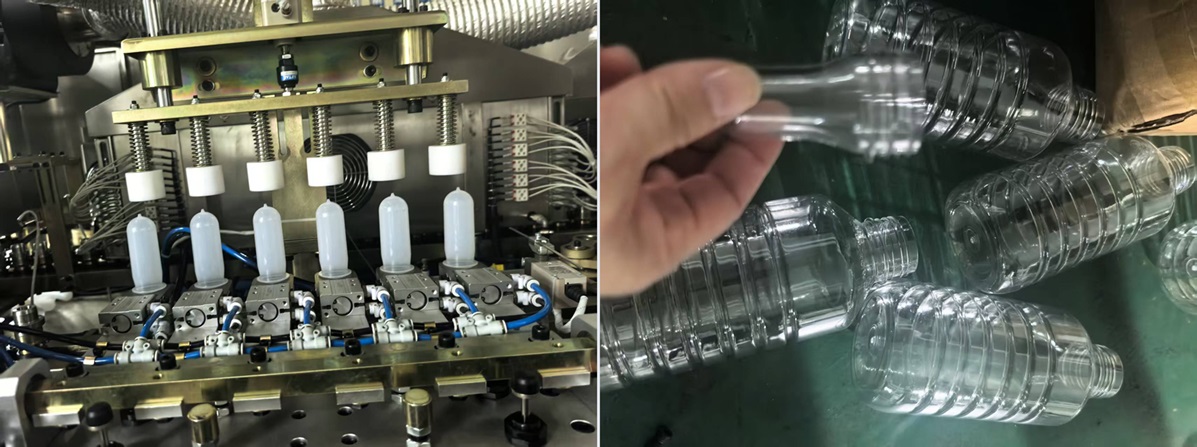

Automatic preform-feeding for conveyor, it is easy to operate by only putting a certain quantities of preforms inside the feeding bucket. The movement of feeding, heating, blowing and finished bottle transferring is done automatically.

Precision & Reliability

Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly. PLC panel adopts Delta to make the machine stable and reliable.

Key Attributes:

ITEM

UNIT

TECHINICAL DATA (L-BS514 12)

Product Material



PET

Max Volume of Product

L

0.1-2L

Neck Diameter

mm

18-48

Theoretical Output

pcs/hr

1800-2000

Max.mould Plate Dimension(W*H)

mm

280 *300

 Thickness of Mould

mm

220

Clamping Force

KN

160

Mould Ppening Stroke

mm

125

Air Compressor

M3 /Mpa

1.65/3.0*1 set

Air Pressure for Blowing

KW

48

Water Chiller

HP

5HP

Power

KW

1.5/10

Voltage/Frequency

V/HZ

380/240/110/50-60  (3-phase)

Main Machine(L*W*H)

M

2.5*1.95*2.2

Automatic Feeding Machine

M

1.9*1.2*2.6

Main Machine Weight

T

2.8



Applications:
Our fully automatic machine provides high-efficiency blowing solutions for PET and PP containers across multiple industries:
  • Beverage Industry: High-speed production for Mineral Water, Carbonated Soft Drinks (CSD), and Hot-fill Juices/Teas.
  • Food & Edible Oil: Durable solutions for Cooking Oil handles, Sauce bottles, and Vinegar containers (0.1L - 5L).
  • Personal Care: Aesthetic packaging for Shampoos, Cosmetics, and Lotion bottles with high transparency.
  • Household & Pharma: Chemical-resistant containers for Detergents, Cleaners, and Medicine bottles.
  • Specialized PP Bottles: Heat-resistant solutions for high-temperature sterilization and microwave-safe packaging.
