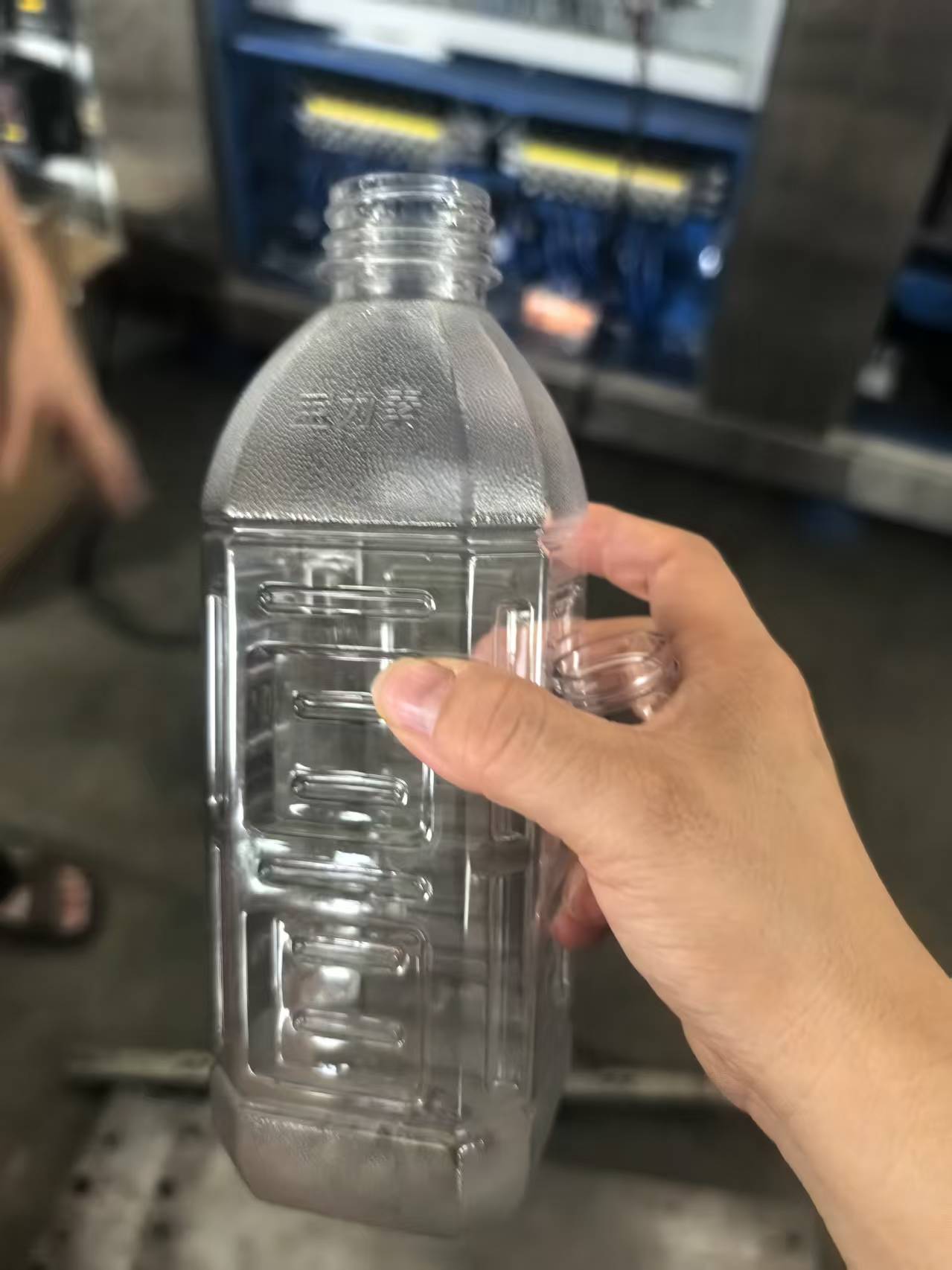

This full automatic PET, PVC, and PP disposable plastic Bottle Blowing machine is designed for efficient production of food-grade plastic Bottle . It supports multiple materials and delivers stable performance, precise forming, and high output with minimal labor.
Item No :
GYC-B2026Order(MOQ) :
1 SETPayment :
CONTACTProduct Origin :
CHINAColor :
CUSTOMERMIZEDShipping Port :
CHINA PORTLead Time :
35-40DAYSWeight :

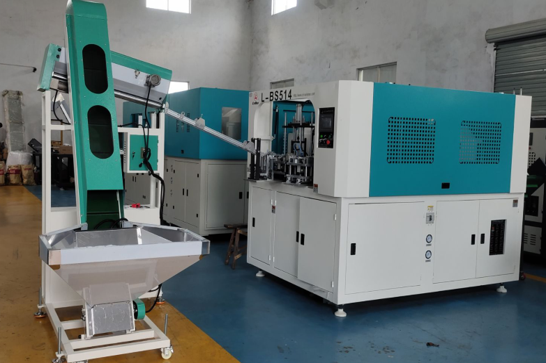

10TONAutomatic PET& PP&PVC Bottle Blowing Machine
| 1, Specifications of L-BS514(2-cavity): | |||

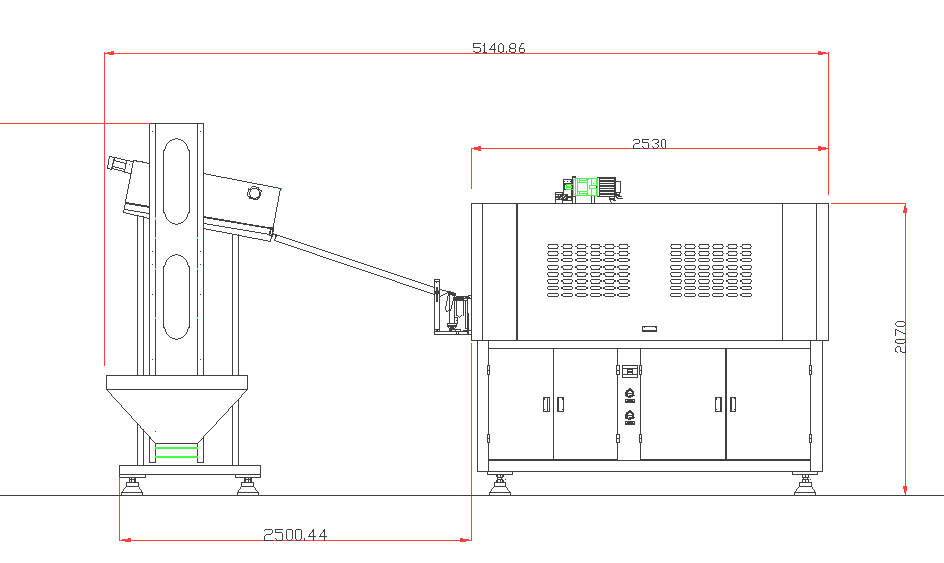

| 1.1, Main machine dimension:2200(L)*1900(W)*1700(H)mm; | |||
| Convyeor dimension: 1700(L)*1200(W)*1800(H)mm; | |||
| 1.2, Theoretical output: 0.5L,2000-2500pcs/hour. | |||
| 1.3, The main structure is made of #63 channel steel, welded by A3 folding, the surface (blue as basic color) is treated with plastic ejection. the whole structure is delicate and durable. | |||
| 1.4, Solenoids adopt Taiwan Airtac brand，PLC is from Taiwan Delta, | |||
| 1.5, Conveyor system adopts #45 steel, the surface is galvanized. | |||
| 1.6, Automatic preform-feeding for conveyor, it is easy to operate by only putting a certain quantities of preforms inside the feeding bucket. The movement of feeding,heating,blowing and finished bottle transferring is done automatically. | |||

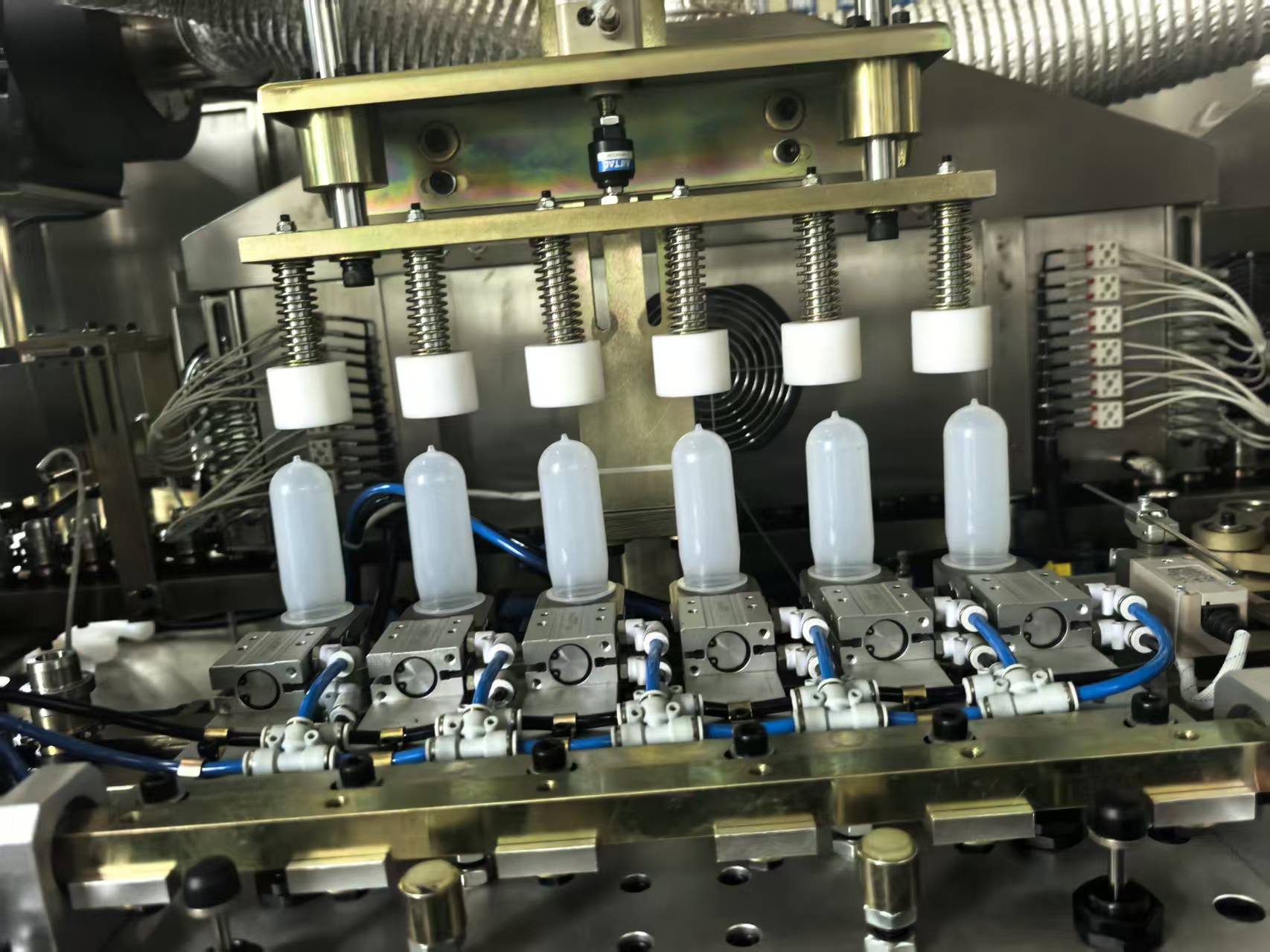

| 1.7, Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly. | |||
| 1.8, PLC panel adopts Delta to make the machine stable and reliable. | |||
|
TYPE |
ITEM |
UNIT |
TECHINICAL DATA (L-BS514 1出2) |
|
|
Product material |
|
PET |
|
最大容量Max volume of product |
L |
0.1-2L |
|
|
最大口径Neck diameter |
mm |
18-48 |
|
|
产量 theoretical output |
pcs/hr |
1800-2000 |
|
|
|
max.mould plate dimension(W*H) |
mm |
280 *300 |
|
最大模板尺寸 |
|||
|
thickness of mould 模具厚度 |
mm |
220 |
|
|
clamping force |
KN |
160 |
|
|
mould opening stroke开模行程 |
mm |
125 |
|
|
r |
空压机压力air compressor |
M3 /Mpa |
≥1.65/3.0*1set |
|
功率air pressure for blowing |
KW |
48 |
|
|
|
冷水机Water chiller |
HP |
5HP |
|
|
功率power |
KW |
1.5/10 |
|
电压voltage/frequency |
V/HZ |
380/240/110/50-60 (3-phase) |
|
|
|
主机外形尺寸main machine(L*W*H) |
M |
2.5*1.95*2.2 |
|
上料机 |
M |
1.9*1.2*2.6 |
|
|
重量main machine weight |
T |
2.8 |

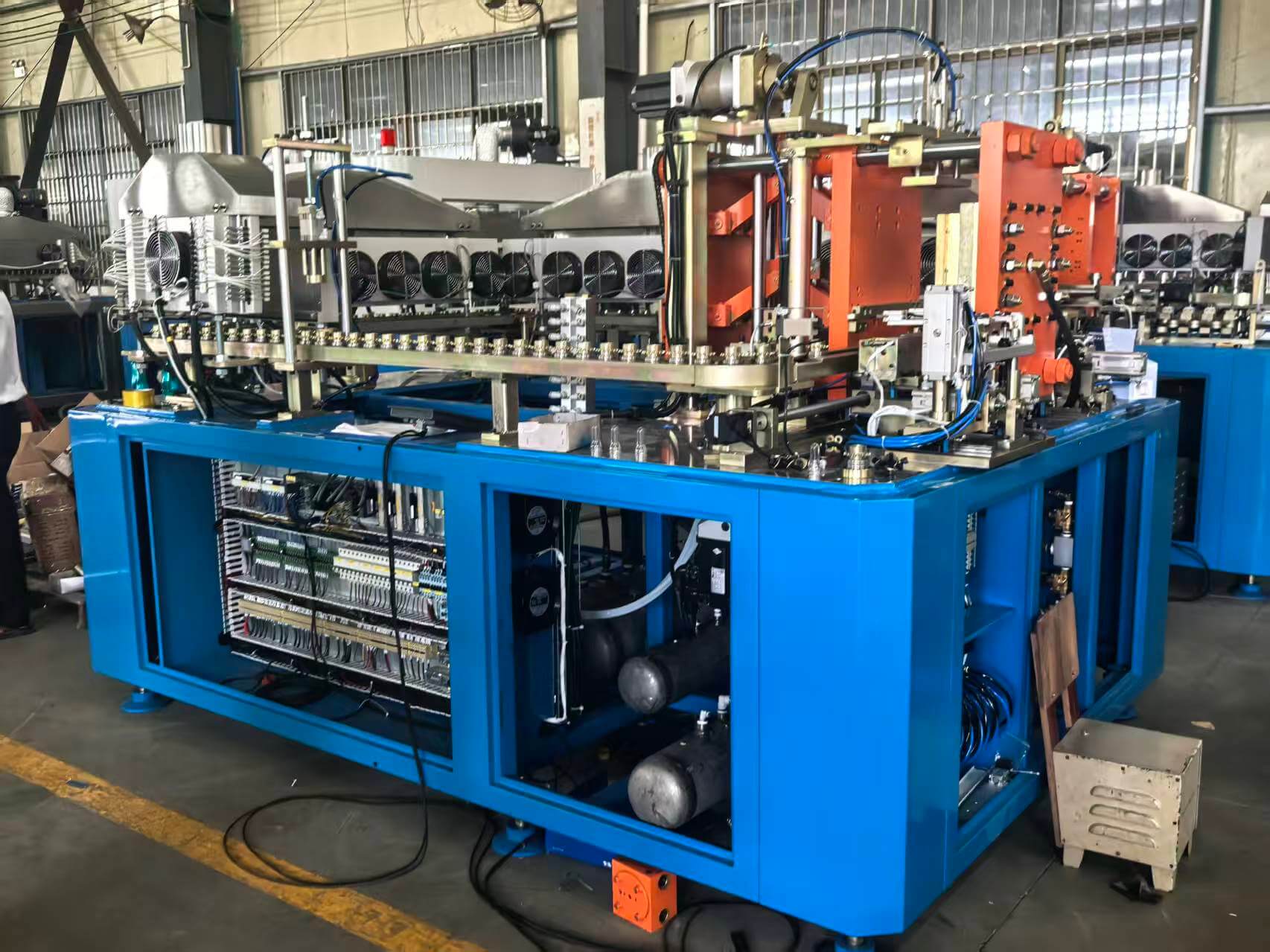

| 1, Specifications of L-BS514(4-cavity): | |||
| 1.1, Main machine dimension:4200(L)*1900(W)*2200(H)mm; | |||
| 1.2, Theoretical output: 4000bph(500ml) | |||
| 1.3, The main structure is made of #63 channel steel, welded by A3 folding, the surface (blue as basic color) is treated with plastic ejection. the whole structure is delicate and durable. | |||
| 1.4, Stretch cylinder and pneumatic components adopt SMC brand，PLC is from Taiwan Delta. | |||
| 1.5, Conveyor system adopts #45 steel, the surface is galvanized. | |||
| 1.6, Automatic preform-feeding for conveyor, it is easy to operate by only putting a certain quantities of preforms inside the feeding bucket. The movement of feeding,heating,blowing and finished bottle transferring is done automatically. | |||
|
1.7, Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly.
|
|||
