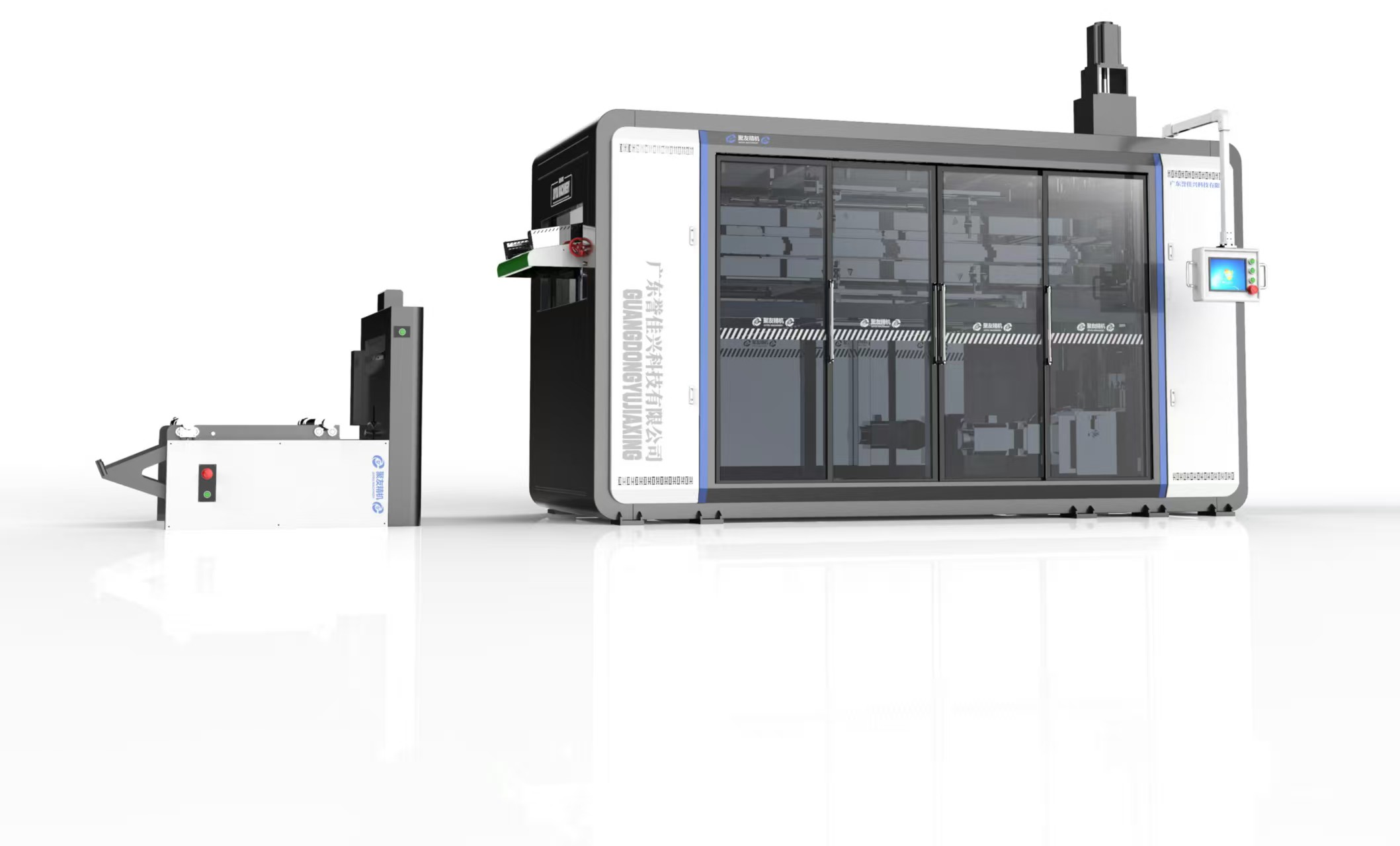

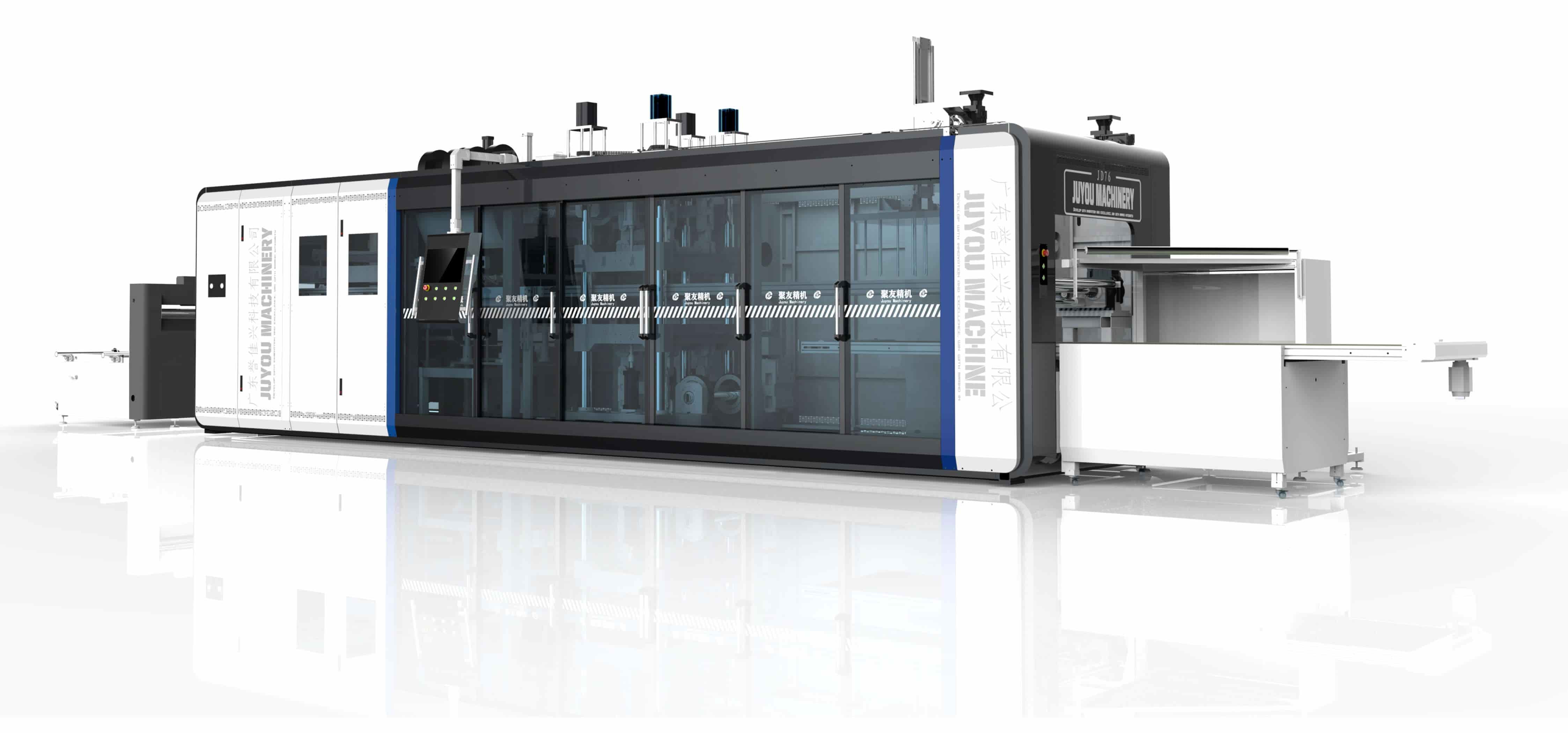

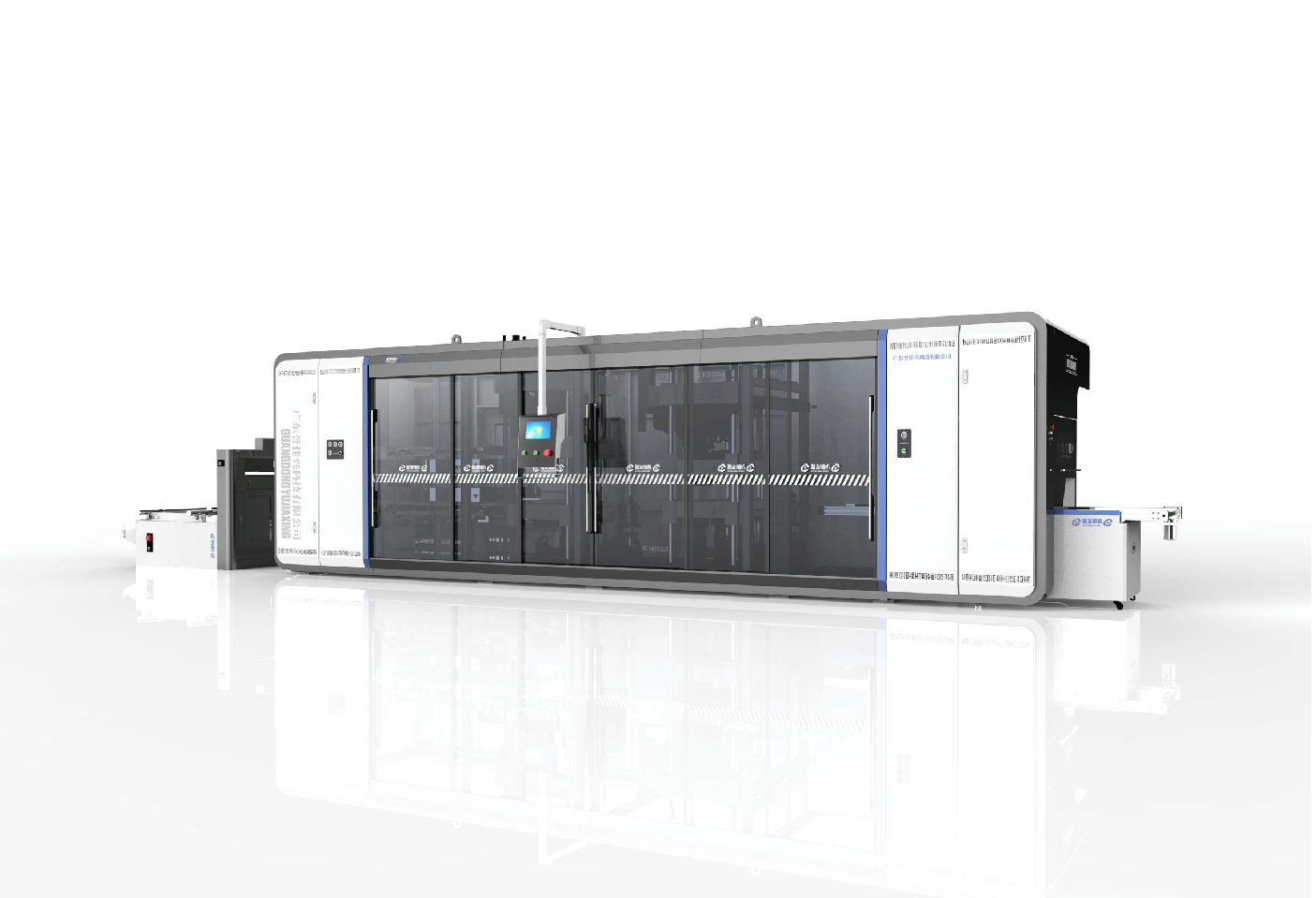

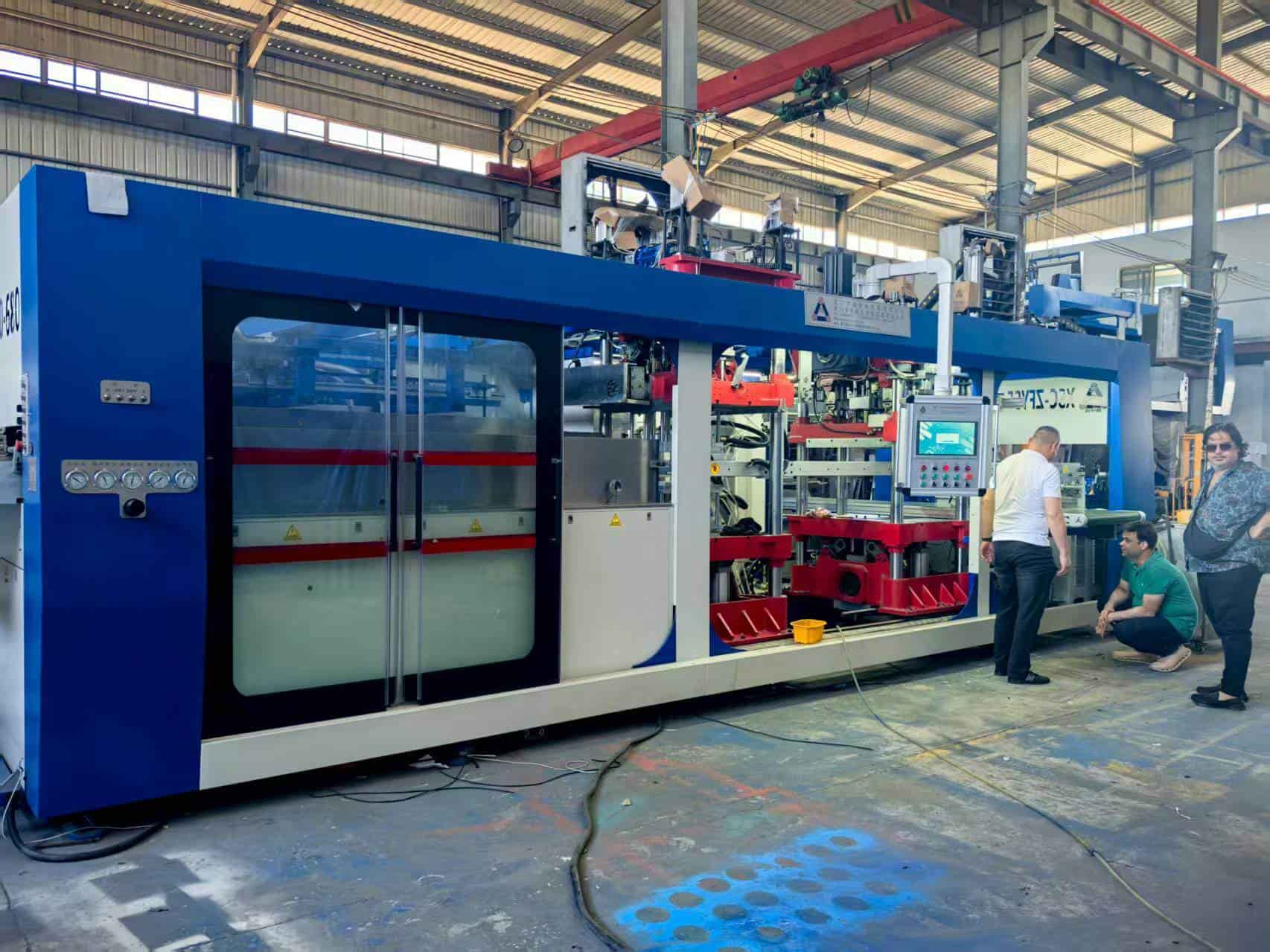

Full Automatic PET & PP Disposable Plastic products Manufacturing Forming Thermoforming Machine

Thermoforming molding machine

Full Automatic PET &PVC &PP Disposable Pet Plastic Water Cups Manufacturing Forming Thermoforming Machine

This supplier is both a manufacturer and trader, offering full customization, design customization, and sample customization services, with product certifications obtained.

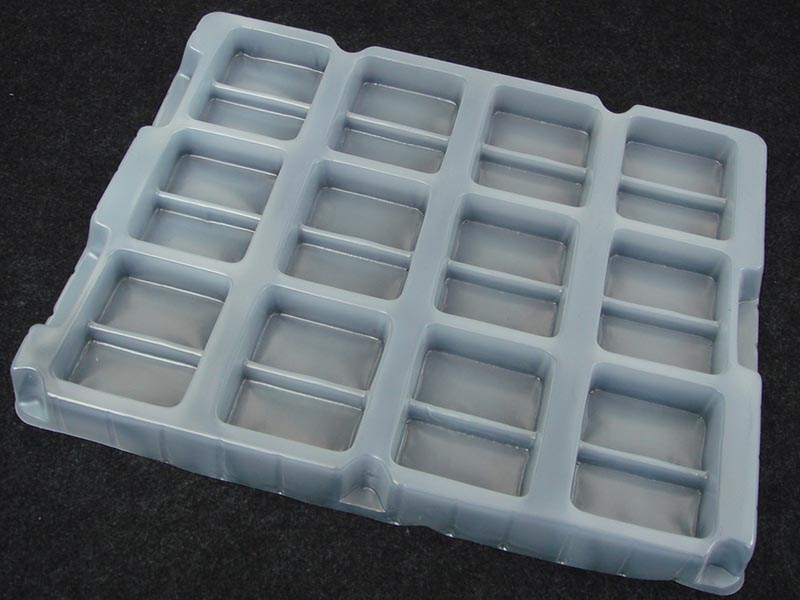

Disposable Blister plastic container has high tolerances. According to the shape and structure of the article and the weight of the tray package suitable for bearing strength, the thickness of the material used is also different, depending on the packaging needs of the packaged item.

The blister packing is often used in the food industry. electronics industry, toy industry, stationery industry, technology products industry, cosmetics industry, health care productsindustry and so on.



Customization options

Customized logo (Min. order: 1 set)

Customized packaging (Min. order: 1 set)

Graphic customization (Min. order: 1 set)

  • Item No :

    GYC-D2025
  • Order(MOQ) :

    1 SET
  • Payment :

    CONTACT
  • Product Origin :

    CHINA
  • Color :

    CUSTOMERMIZED
  • Shipping Port :

    CHINA PORT
  • Lead Time :

    60-90DAYS
  • Weight :

    20TON
Device Specification
Sheet width
500~750 mm
Max.Forming Height(mm)
130
Sheet thickness
0.12~2.0 mm
Forming Width (mm)
650
Forming Length
780 mm
Production Speed(Cycles/min)
40
Max.roll diameter
≤800 mm
Pneumatic component
SMC
Max.cutting force
800KN
Heating Power (kW)
116
Formed depth
≤±130 mm
Dimension(L*W*H)
12000*2600*2600mm
Voltage
380V/50HZ 3Ph
Weight
17T
High speed, low noise, high reliability, and convenience to maintain Max. Production speed up to 50 cycles per minute, definitely can be named as high speed thermoforming machine.



The door with toughened glass and aluminum, elegant appearance, easy to clean.
The surface of platens with fine grinding, and the parallelism for platens with high precision is less than 0.03mm.
Two movable platens (upper and lower)are adjustable in height, and it's suitable for any height of platen.
The Plate with assist installing device can make installing and changing mold more easy to reduce machine downtime.
■ Automatic mold locking device, faster tool change, easy to installed.
The aluminum alloy caterpillar track, the stress strength of chain track is huge, not easily to deformation.
The chain with roller guide, is running smoothly and noiseless.
■ Heating brick is made of imported heating wire and three-year warranty.
Cutting keeps pace with forming,precise positioning, precise Cutting.
Smooth operation, less noise.



Key attributes



plastic type
PMMA, Hips, PU, PVC, PS, PA, BOPS, PP, Bopp, EPS, PET
key selling points
High Productivity
video outgoing-inspection
Provided
machinery test report
Provided
core components
Control System, Servo System, Touch screen control
product type

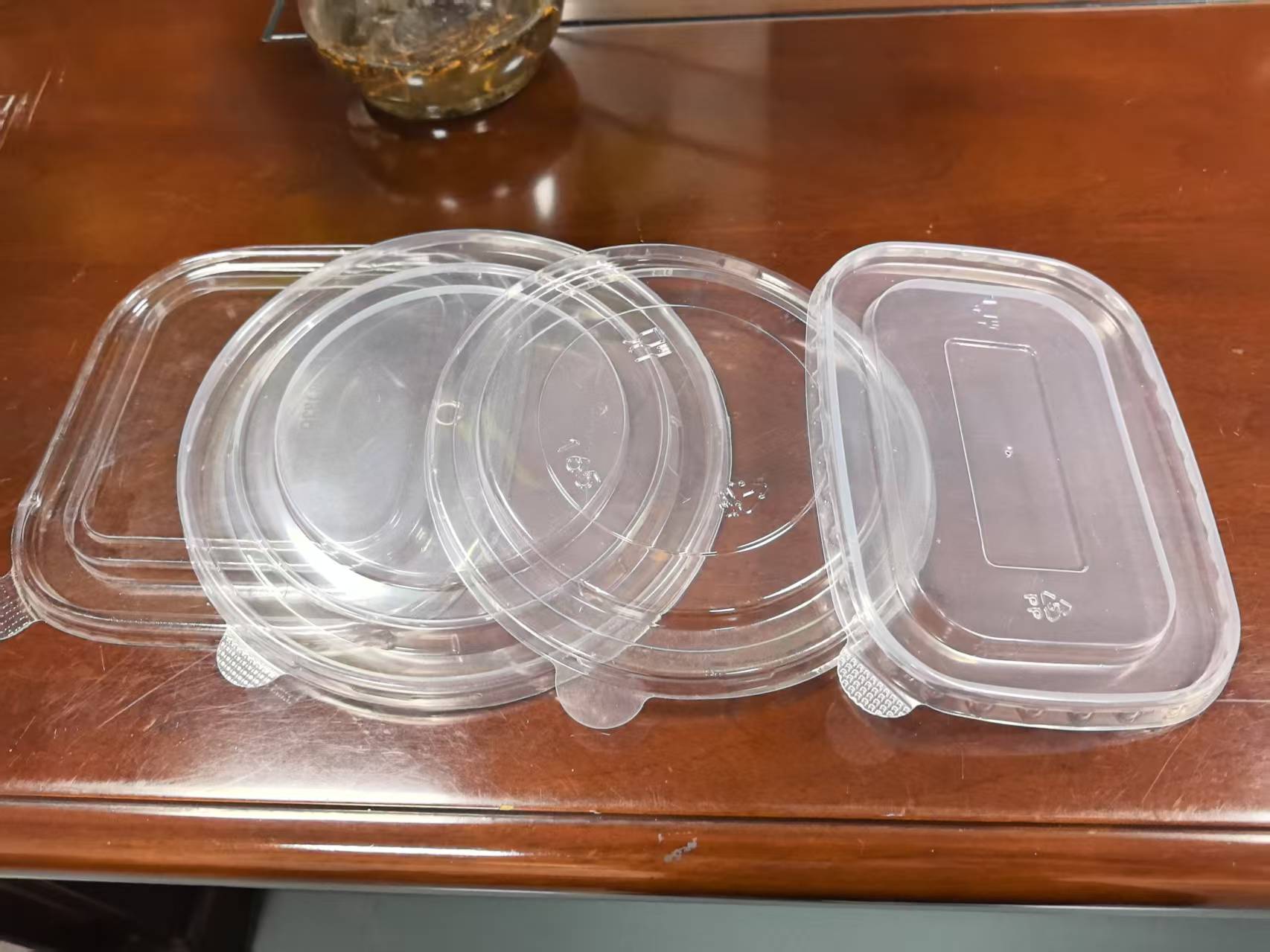

PET cup lid, PP&PET FOOD CONTAINER
processing type
Plastic Thermoforming Machine
production speed(cycles/min)
30-45
warranty
1 Year
dimension(l*w*h)
12000*2600*2600mm
voltage
380V/50HZ
forming width (mm)
650 mm
forming length (mm)
780 mm
weight (t)
17 T
max.forming height(mm)
150 mm
air pressure(mpa)
0.7 MPa
sheet thickness(mm)
0.12 - 2 mm
heating power (kw)
116 kW
air comsumption(l/min)
3500 L/min
water comsumption(l/min)
0 L/min
place of origin, --XIAMEN,CHINA
brand name
XIAMEN XIN CHENG
power(kw)
155
Keyword
Thermoforming molding machine
Customization
we can change it to automation package
Marketing Type
Hot Product 2022
Finished product
biodegradable food container machine
Forming Area
780*650mm
Forming depth
150mm
Max sheet roller diameter
800
Function
Forming - Cutting - Punching-Stacking
Heating Oven
3 sections heating



Certification
Video technical support, Free spare parts, Field installat
